Aquila

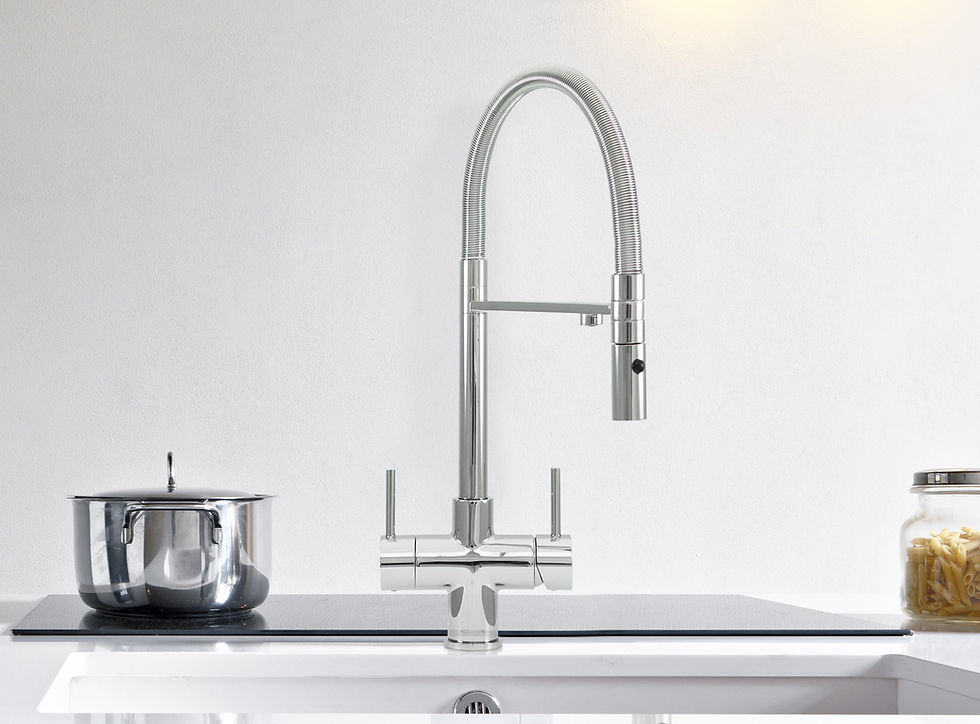

The Aquila is a professional style mixer that features a tightly wound spring resulting in a less industrial look. The Aquila offers practicality and style, it utilises a treated water outlet neatly hidden in the underside of the two-way spray holder.
​

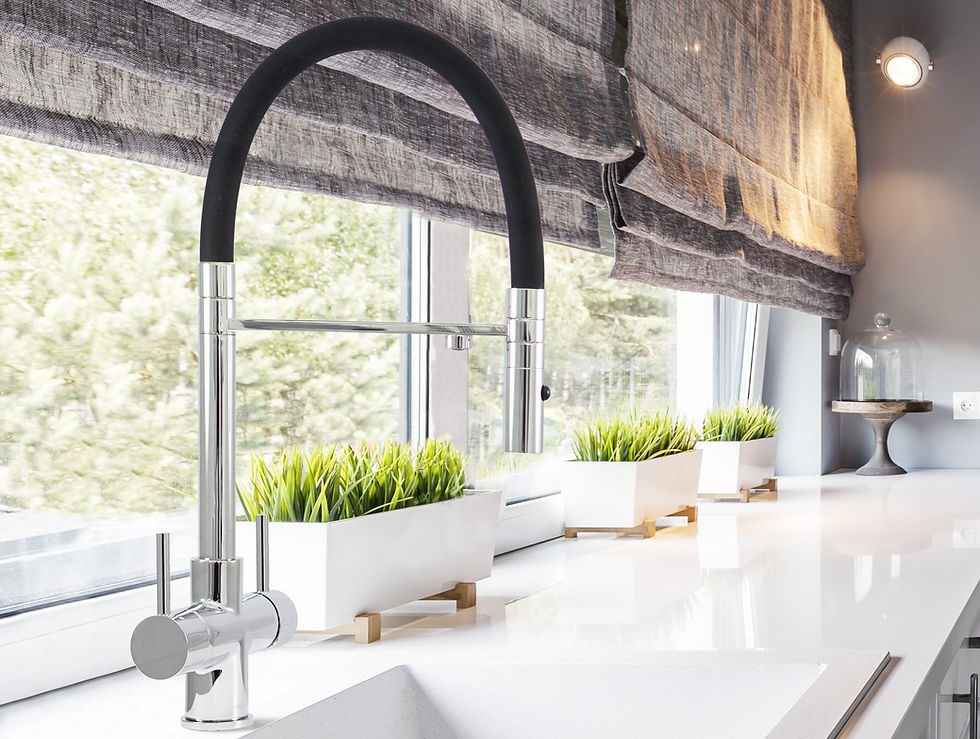

Finishes include all chrome, or a chrome body with a black or white silicone hose instead of the spring. The Aquila is also available in brushed steel with a chrome spring.
Have you added a filter? If you need one please click the filter button.
Did you want chilled filtered water? If you do please click the chiller button.
Product Range
Controls
All Acquapuro three lever mixers have been designed so that the hot water is operated by the left hand lever, cold water by the right hand lever and either filtered or hard water being conveyed by the middle lever.
Our two lever mixers combine hot and cold water on the right hand lever - the adjacent slide show explains how this works.
Three lever mixers are functional and practical however, two lever mixers are more refined, they offer the same features but with fewer levers.
All Levers Upright
Left lever forward
Right lever forwards
All Levers Upright
Technical Information
Features
Two way spray hose which can be removed from the holder.
Dedicated filtered water outlet.
Quarter turn ceramic valves and cartridges.
Spout connection anti-wobble nylon guide ring.
Double pair of spout O-rings.
Solid fix installation kit.
Flexible hoses 450mm long c/w non return valves.
Specifications
Body and main components manufactured from brass.
Maximum water pressure 5.5bar. Recommended minimum 1.0bar
Two lever hot & cold water flow 3.10 lpm, mixed water 6.10 lpm @ 0.5bar
Three lever hot & cold water flow 3.20lpm, mixed water 6.10 lpm @ 0.5bar
