Monza

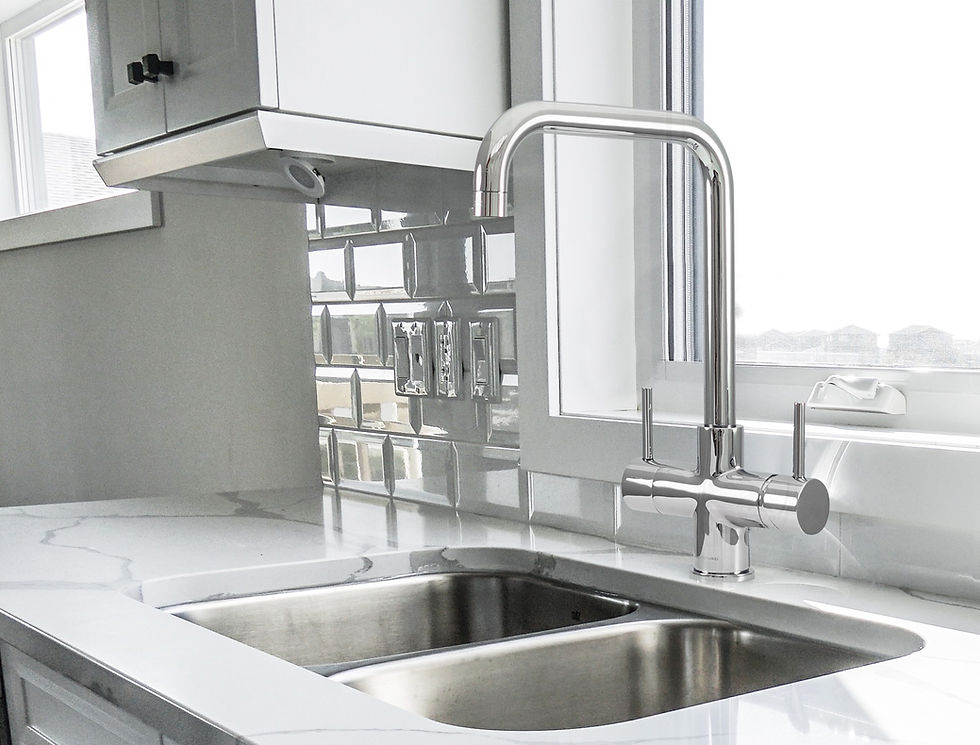

The Monza is super contemporary thanks to its double curved quad spout. The angular design, combined with dual flow technology, which is unusual for this spout design, means the Monza will complement any modern kitchen.
Chrome and brushed steel finishes are available, plus two or three lever configurations.
Have you added a filter? If you need one please click the filter button.
Did you want chilled filtered water? If you do please click the chiller button.
Product Range
Controls
All Acquapuro three lever mixers have been designed so that the hot water is operated by the left hand lever, cold water by the right hand lever and either filtered or hard water being conveyed by the middle lever.
Our two lever mixers combine hot and cold water on the right hand lever - the adjacent slide show explains how this works.
Three lever mixers are functional and practical however, two lever mixers are more refined, they offer the same features but with fewer levers.
All Levers Upright
Left lever forward
Right lever forwards
All Levers Upright

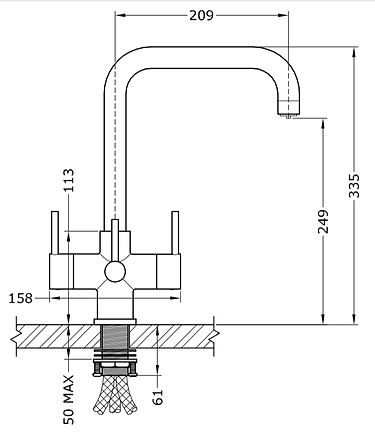

Technical Information
Features
Dual flow swivel spout.
Dual opening aerator.
Quarter turn ceramic valves and cartridges.
Spout connection anti-wobble nylon guide ring.
Double pair of spout O-rings.
Solid fix installation kit.
Flexible hoses 450mm long c/w non return valves.
Specifications
Body and main components manufactured from brass.
Maximum water pressure 5.5bar. Recommended minimum 0.5bar
Two lever hot & cold water flow 5.20lpm, mixed water 6.20lpm @ 0.5bar
Three lever hot & cold water flow 5.20lpm, mixed water 7.50lpm @ 0.5bar
