Genoa

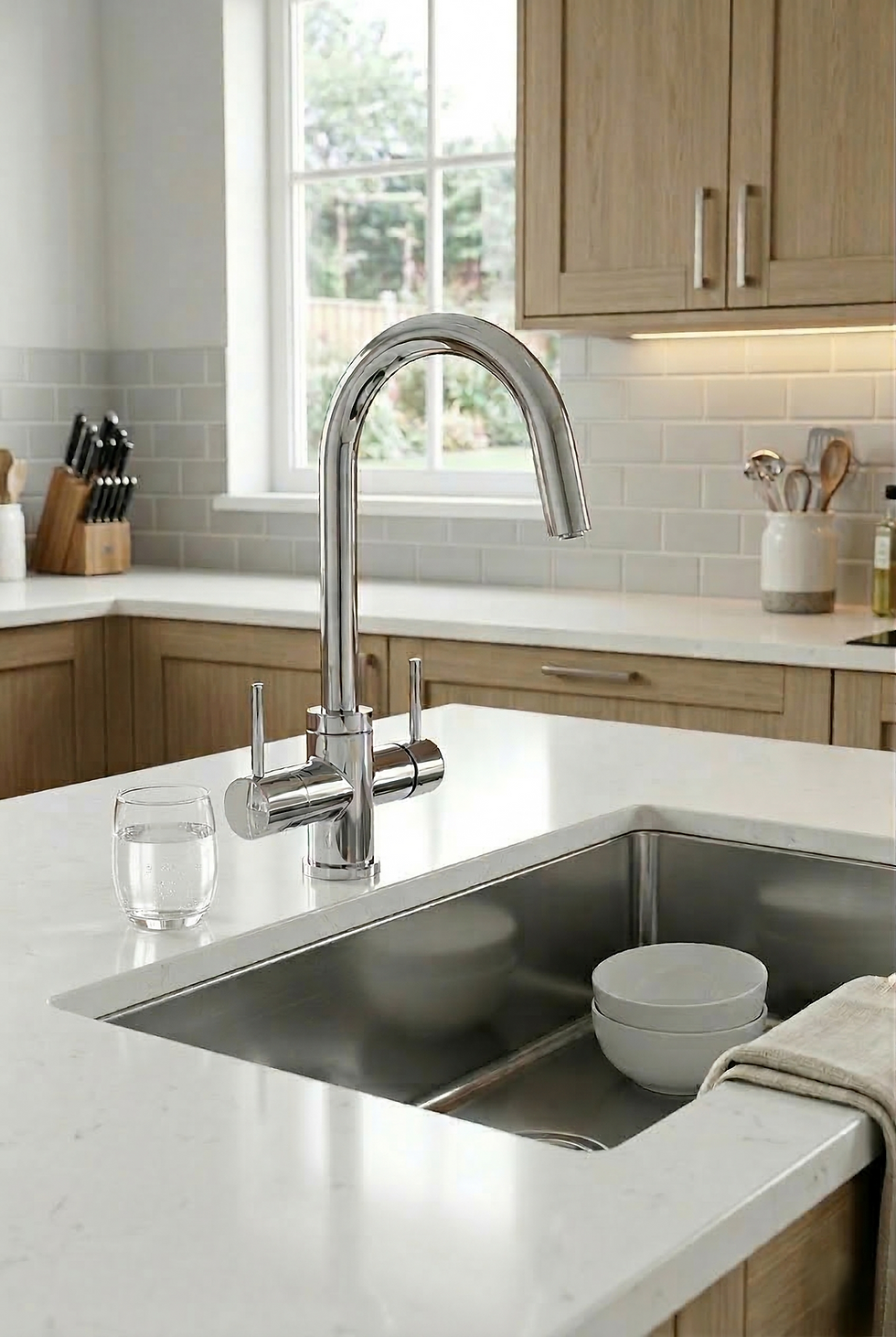

The Genoa is a small range of competitively priced chrome, swan neck, three way mixers. The standard Genoa has a single flow spout meaning the hot, cold and filtered water all share the same outlet. The Genoa mixers with 'Dual Flow' in their name have a dedicated internal tube making sure the drinking water remains separate from the hot and cold.
The Genoa mixers have three separate flexible hoses meaning they can be used with softeners and reverse osmosis systems as well as filters however, the Genoa 3 Dual Flow only has two connections, for the hot and cold, and uses an integrated diverter for the drinking water. This means the installation is more straightforward as it only has hot and cold water connections like any other tap.
Have you added a filter? If you need one please click the filter button.
Did you want chilled filtered water? If you do please click the chiller button.
Product Range
Controls
All Acquapuro three lever mixers have been designed so that the hot water is operated by the left hand lever, cold water by the right hand lever and either filtered or hard water being conveyed by the middle lever.
Our two lever mixers combine hot and cold water on the right hand lever - the adjacent slide show explains how this works.
Three lever mixers are functional and practical however, two lever mixers are more refined, they offer the same features but with fewer levers.
All Levers Upright
Left lever forward
Right lever forwards
All Levers Upright
Genoa 2 Dual Flow Technical Information
Features
Dual flow swivel spout (180 degrees).
Dual opening aerator.
Quarter turn ceramic valves.
Spout connection anti-wobble nylon guide ring.
Solid fix installation method.
Three flexible hoses 400mm long 1/2" connection with adapter.
Specifications
Body and main components manufactured from brass.
Maximum water pressure 5.5bar. Recommended minimum 0.5bar
Two lever hot & cold water flow 5.40lpm, mixed water 6.40lpm @ 0.5bar
Three lever hot & cold water flow 5.40lpm, mixed water 7.90lpm @ 0.5bar
Genoa 3 Dual Flow Technical Information
Features
Dual flow swivel spout.
Dual opening aerator.
Quarter turn ceramic valves.
Spout connection anti-wobble nylon guide ring.
Double spout O-rings.
Standard installation fixing kit.
Flexible hoses 400mm long 1/2" connection.
Specifications
Body and main components manufactured from brass.
Maximum water pressure 5.5bar. Recommended minimum 0.5bar
Two lever hot & cold water flow 5.40lpm, mixed water 6.40lpm @ 0.5bar
Three lever hot & cold water flow 5.40lpm, mixed water 7.90lpm @ 0.5bar
Genoa 3 Technical Information
Features
Single flow swivel spout.
Single opening aerator.
Quarter turn ceramic valves.
Spout connection anti-wobble nylon guide ring.
Double spout O-rings.
Standard installation fixing kit.
Flexible hoses 400mm long 1/2" connection.
Specifications
Body and main components manufactured from brass.
Maximum water pressure 5.5bar. Recommended minimum 0.5bar
Two lever hot & cold water flow 5.40lpm, mixed water 6.40lpm @ 0.5bar
Three lever hot & cold water flow 5.40lpm, mixed water 7.90lpm @ 0.5bar
